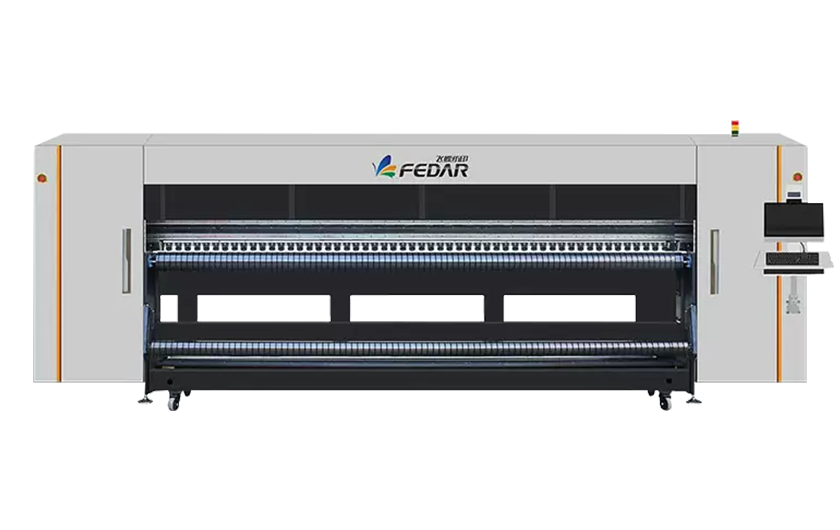

8 Heads & 4.2m FD7428E

Dye Sublimation Textile Printer

Printer Head: 8*EPSON I3200-A1
Printer Resolution: 360*1200DPI 1PASS 440m²/h
360*2400DPI 2PASS 225m²/h
Printer Width: 4200mm
Printer Ink: Dye Sublimation Ink,Pigment Ink
Printer Media: Transfer Paper ,Poster Paper
RIP Software: Maintop, FlexiPRINT, ONYX, Neostampa and etc.

GET PRICE

SEND INQUIRY

Wechat:0086 15515715397

Whatsapp: 008615515715397

Main Features Specification Application Inquiry

Main Features

High Resolution Printhead

8 Epson I3200-A1 printhead, 360*1200DPI,1PASS can reach up to 440㎡/h, 360*2400DPI, 2PASS 225m²/h.

Sheet spreading roller + slotted suction panel

New upgrade! Paper feeding is more even, thin paper does not wrinkle when printing, high-precision output, and no bulging.

Industrial grade high precision machined one-piece beam and mainframe

Ensure high-speed and stable operation of the equipment, greatly improve printing quality and extend the service life of the machine.

Front and rear electromagnetic damping control system

The front and rear electromagnetic damping and ultrasonic tension rod control system ensures the smooth running of paper, smoother printing, neat winding and improved printing quality.

Safety grating device added to the front gate

Reduce the risk of operator injury, protect their safety, and be more humane.

3-speed adjustable pinch rollers

The pneumatic pressure wheel control and 3-speed adjustable pressure wheel make paper loading and feeding more convenient and the pressure control more precise.

Specification

Printer Model		FD7428E
Printhead	Type	EPSON I3200-A1
	Nozzle Qty	8pcs printheads
	Height to Platform	2-5mm
Printing Speed	1pass 440sqm/h
	2pass 225sqm/h
Ink	Color	C M Y K(Optional 8 Colors)
	Type	Dye Sublimation
	supply method	Siphoning
Max Printing Width		4200mm
Printing Media		Transfer Paper
Media Transfer Method		Auto air shaft feeding and take-up system
Feeding Method		Roll to Roll, Leaf
Heating System		Extra Front Heating System
RIP Software		Maintop, FlexiPRINT, ONYX, Neostampa and etc.
Image Format		BMP, TIF, JPG, PDF EtC
Computer	System	WIN7 64bit/WIN10 64bit
	Hardware	Hard disk:500G (system disk more than 100G) GPU:ATI Discrete CD-ROM:DVD ROM Memory:4G or more CPU:Intel i5/i7 processor
	Transmit Port	Gigabit LAN
Work Environment		Temperature:18°C-30℃, Humidity:35%-65%
Power	Input Voltage	210-230VAC
	Printing system	9.5KW
	Drying system	Max power 7.2KW
Dimension	Printer Dimension	600512152090mm
	Packing Dimension	617013852130mm
Color Management	ICC Based	Density & Curves Adjustable
