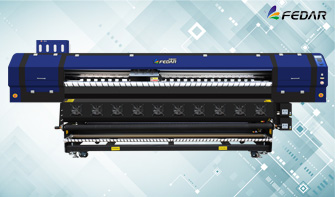

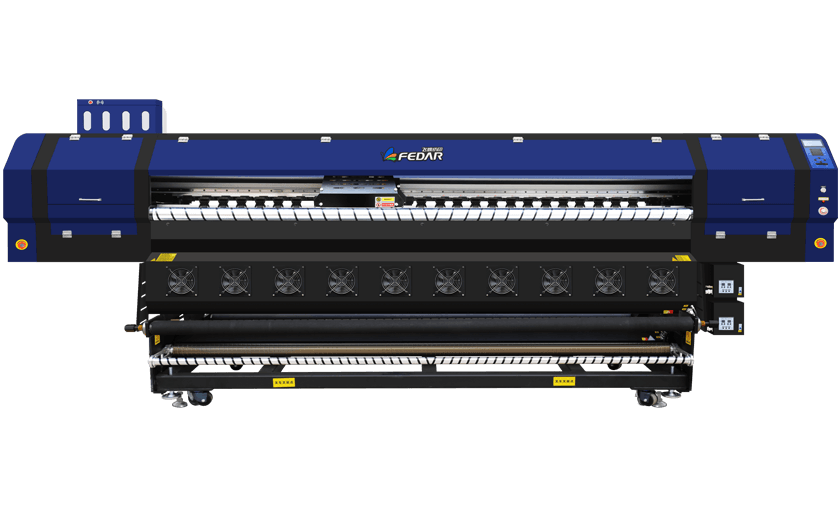

Fedar Sublimation Textile Printer FD5328E

Main Features

Original Epson I3200-A1 Printheads

8 Epson I3200-A1 printheads to ensure continuous ink supply and reduce costs.

Fully Enclosed Capping Station

Long-lasting moisturizing, automatic cleaning, cleaner and simpler printing.

4.5L High-capacity Ink Cartridges

Matched with secondary ink cartridges, to provide guarantee for long-term continuous operation of printer.

Intelligent Ink Starving Alarm

Reducing cumbersomeness of frequently checking remaining amount of ink, and adding ink in time.

Printer Details

High Quality Servo Motor

400W motor, greater driving force, faster speed and more stable operation.

Anti-collision Car

Printhead position can be adjusted according to different printing materials.

Synchronous Wheel

Ensures uniform stepping accuracy and smaller errors.

Feeding and Take-up System

Large loading weight, long service life, uniform loading and unwinding of paper.

THK Mute Guide Rail

Using Japanese THK mute linear guide rail, the movement is more stable and the life is longer.

Japanese NSK Bearings

High quality, fully guarantee the accuracy of the printer and the stability of long-term work.

German IGUS Ink Chain

Imported Germany IGUS ink chain,high quality, to ensure the good completion of printing work.

Fluororubber Pressure Roller

Paper feeding is smooth, no wrinkles, static electricity prevention, no ink flying, more accurate printing size.

Specification

Printer Model		FD5328E
Printhead	Type	EPSON I3200-A1
	Nozzle Qty	8pcs printheads
	Height to Platform	2-5mm
Printing Speed	1pass 420sqm/h
	2pass 210sqm/h
Ink	Color	C M Y K
	Type	Dye Sublimation
	Supply Method	Siphoning
Max Printing Width		3200mm
Printing Media		Transfer Paper
Media Transfer Method		Auto air shaft feeding and take-up system
Drying Method		External,Intelligent and air-heat Integrated drying system
Moisture Mode		Fully sealed auto moisturing and cleaning
RIP Software		Maintop6.0,Photoprint,Onyx,Wasatch and NeoStampa and etc.
Image Format		JPG,TIF,PDF,BMP and etc.
Computer	System	WIN7 64bit/WIN10 64bit
	Hardware	Hard disk:500G or more GPU:ATI Mobility Memory:4G Random Access Memory:8G CPU:Intel i7 processor or above
	Transmit Port	Gigabit LAN
Work Environment		Temperature 18-30℃; Humidity 35%-65%
Power	Input Voltage	210-230VAC 50/60HZ 16A
	Printing system	1500W
	Drying system	Max 10800W
Dimension	Printer Dimension	576014501850mm
	Packing Dimension	528011801770mm

8 Heads & 3.2m FD5328E
