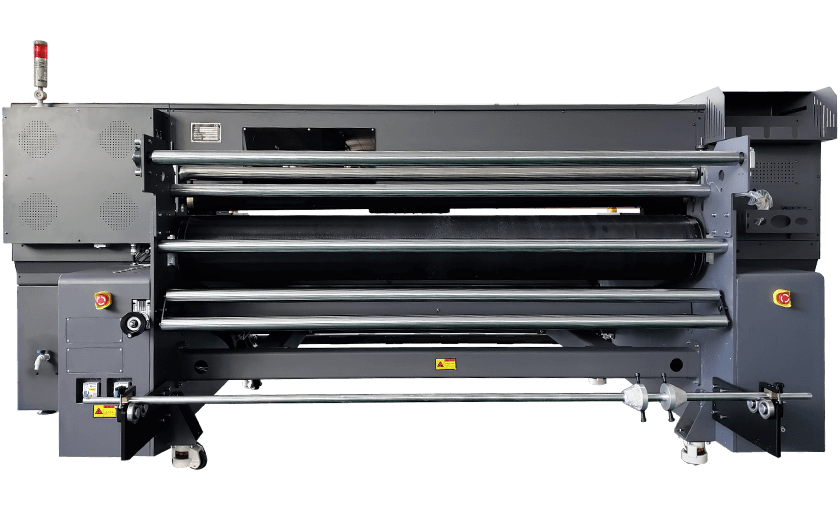

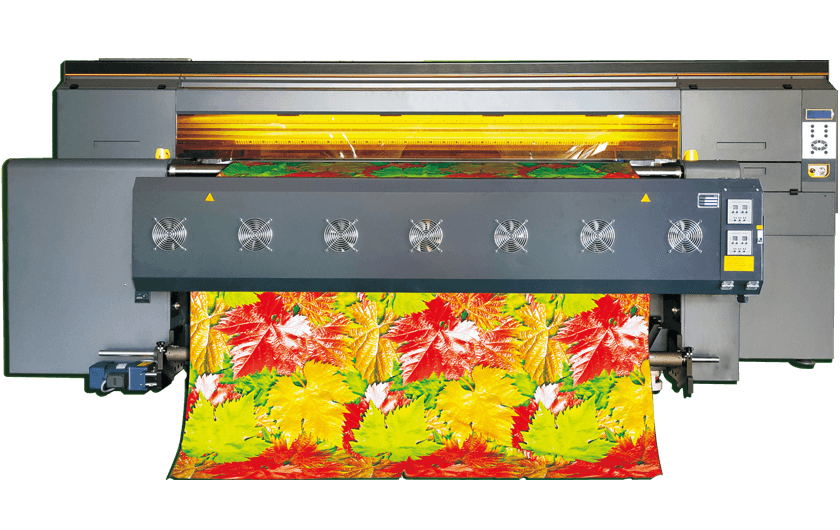

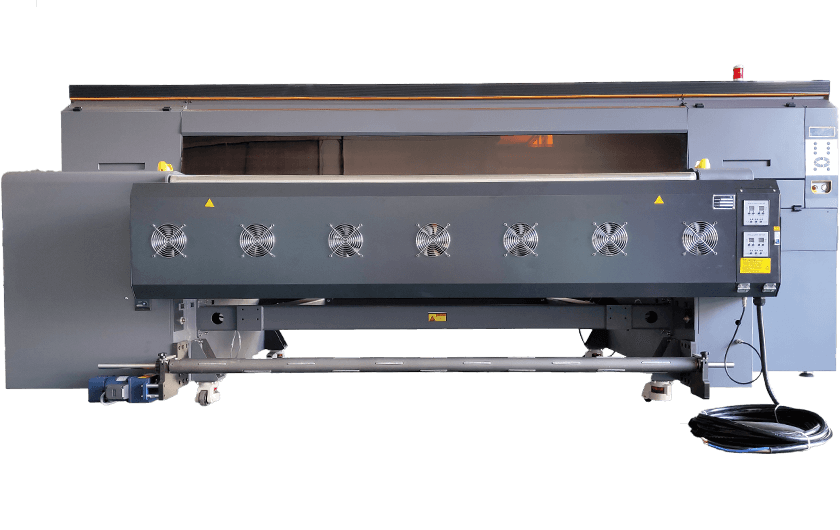

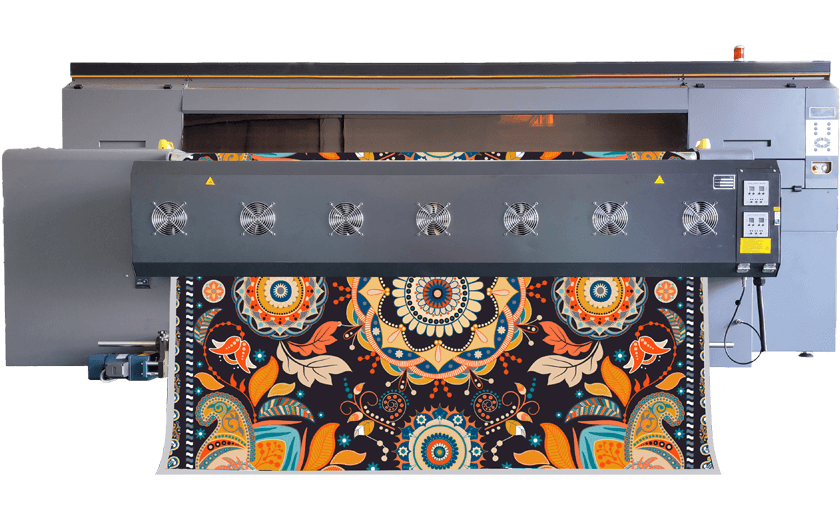

Direct Textile Printer 1862E-Fedar Printer

Main Features

Full production line.Belt auto adjustment

Automatic ink level alarm system

Fast speed, high productivity,160sqm/h speed of garment printer

Rich configuration, optional meter dryer or furnace for direct fabric printer

Convenient and practical, the whole direct textile printer is super cost-effective

Direct textile printer provides professional printing solutions for different materials

Printer Details

Low printing cost, the best choice for cotton roll printing

Automatic online washing of belt.Convenient and practical

Low printhead cost, high resolution and long life

Feed-in system adapts to various materials

Guide belt of direct textile printer is free of deviation correction. Ensure accurate walking

Automatic ink scraping and moisturizing device to ensure the life of Fedar t shirt printer head

External independent drying system of garment printer increases color fastness, washing resistance

Suitable for a variety of printing inks, and a variety of printing colors are available for direct textile printer

Specification

Model	Direct Textile Printer 1862E
Printhead	Type:EPSON I3200-A1 Printhead
	Quantity:6
	Resolution:3200DPI
	Head Property:Auto cleaning, flash and moisturizing
Speed	2pass 160㎡/h
Tested on linear print without feather	4pass 92㎡/h
Tested on linear print without feather	6pass 60㎡/h
Printing Width	1800mm
Ink	Pigment Ink/Disperse Ink/Active Ink/Acid Ink
Ink	Color:CMYK
Moisture Mode	Auto-capping Pump Moisture
Media	Cotton Hemp Polyester Silk
Media Transfer	Auto Tension Take-up Media System
Dryer	Extra Heating System
Ink Supply System	Negative Pressure Ink Supply System
Image Format	JPG,TIFF,EPS,PDF...
Work Environment	Temperature15-30℃ Humidity:45-95%
Power	Rated voltage：AC220V Frequency:50/60 HZ 9000W
Machine Size	340021001500mm

6 Heads & 1.8m 1862E
